Specifications:
| Length of CAT-6 cable between Rx and TX. | Up to 60 metres |
| HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format input | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support audio format output | LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 165MHz |
| Max baud rate | 4.95Gbps |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TT1L) |
| Input/Output HDMI1.3 cable distance | ≤20m AWG26 HDMI 1.3 standard cable |
| Max working current | 800mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |

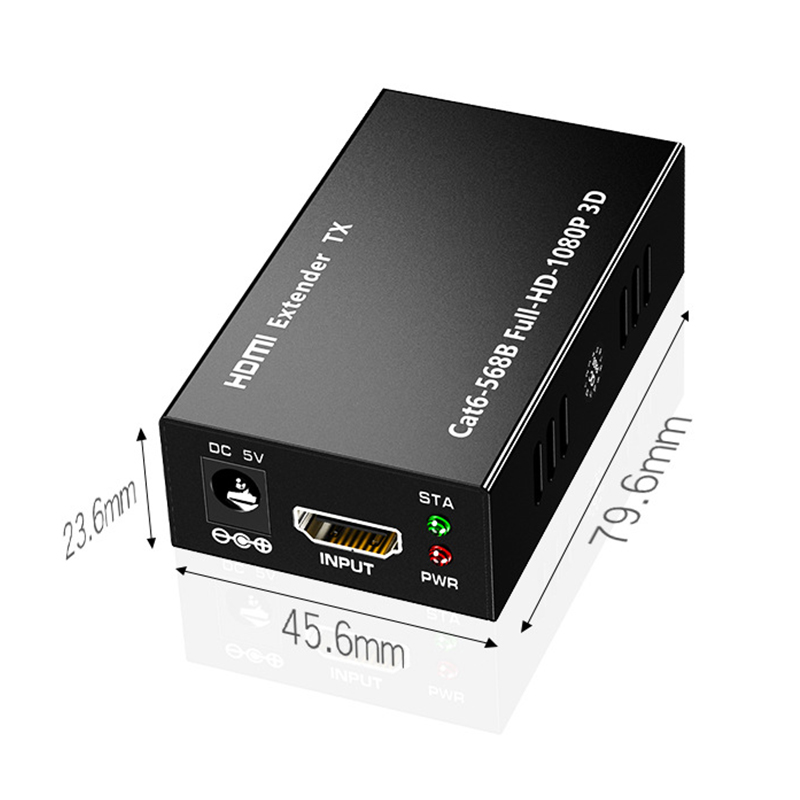

| Dimension (L x W x H) | 82x45x21 (mm) |
| Weight | 0.4kg |

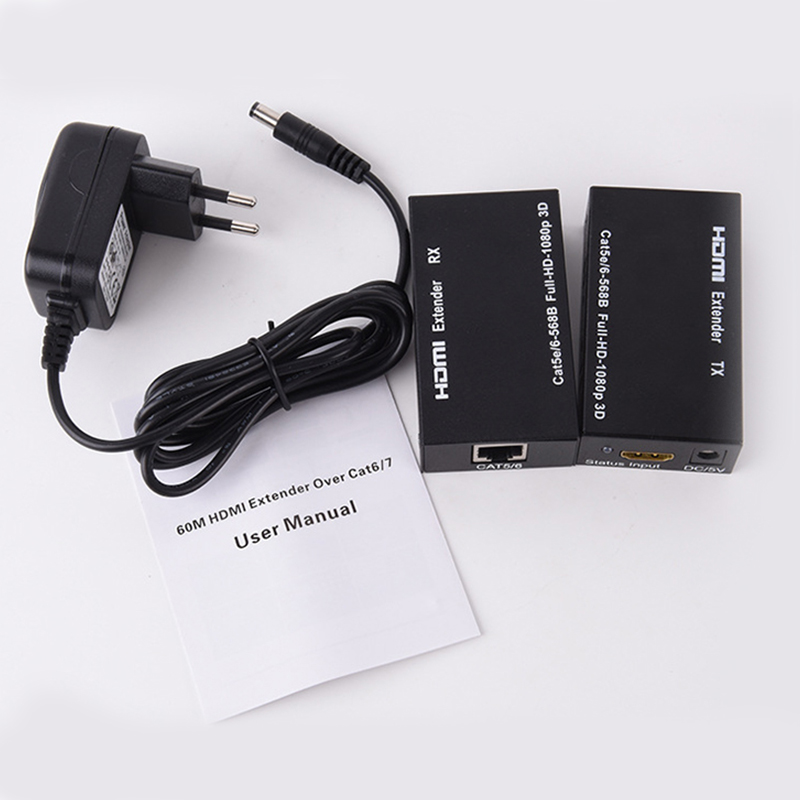

Accessories:
1. Power adaptor 5V/2A
2.User manual
